Perfecting the Rectangle: The Challenge Behind EV Battery Enclosures

The Rectangle Dilemma

To maximize usable volume and integrate cleanly into existing vehicle architectures, EV battery enclosures must be rectangular. This shape supports optimum packaging efficiency, thermal management, and module alignment.

However, conventional metal stamping processes — designed for curved components like roofs, doors, and bumpers — do not naturally produce straight surfaces or tight radii. As a result, OEMs frequently end up with enclosure shapes that resemble bathtubs or include wrinkles, cracks, or sealing risks. These defects can compromise the battery’s protection against environmental hazards.

Manufacturers often compensate with additional pieces, welds and fasteners. While effective, this patchwork approach increases costs, adds weight, complicates quality control, and slows scaling. Over time, these cumulative inefficiencies become significant barriers to EV production.

OPTiForm: A Smarter Manufacturing Solution

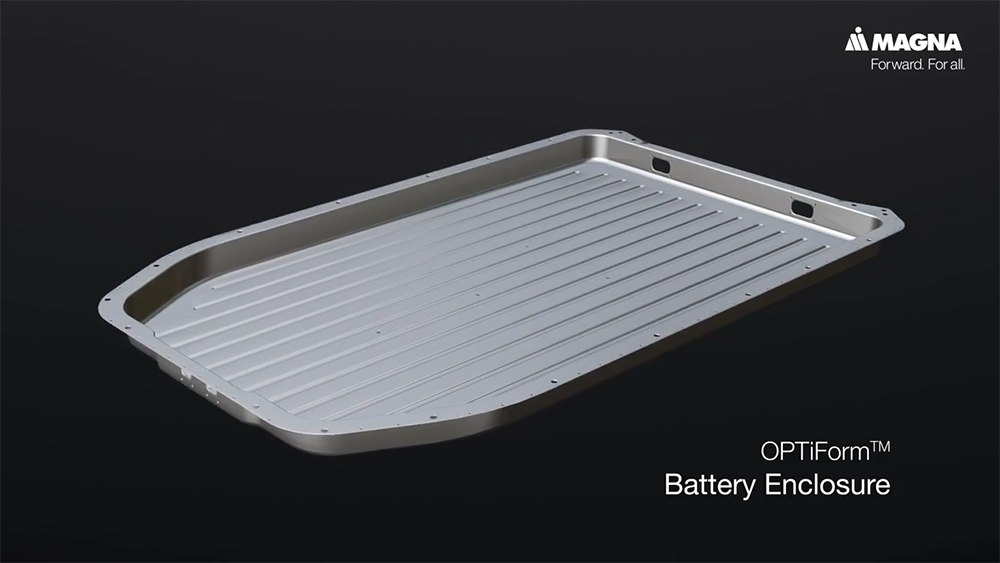

Rather than working around the limitations of traditional stamping, Magna engineered a fundamentally better approach. OPTiForm is a simplified, two‑stage deep‑draw stamping process that actively manages metal flow to produce more consistent, one‑piece rectangular enclosures.

OPTiForm embeds intelligence directly into the forming process by:

• Anticipating material behavior using advanced simulation, predictive modeling, and software‑based monitoring;
• Precisely controlling metal flow, decreasing unwanted stretching or wrinkling; and
• Using two defined draw stations to first gather all required material without splitting or wrinkling, then a second draw, which improves consistency and enables straight lines and tight radii.

By managing the root cause — the natural tendency of metal to curve under stress — OPTiForm decreases the need for extensive rework and is aimed at providing superior dimensional accuracy.

Efficiency, Performance, and Design Benefits

OPTiForm delivers measurable improvements across manufacturing and vehicle performance:

• Removes hundreds of welds and fasteners typically required for traditional multi-piece enclosures;
• Reduces production steps, cutting cost, labor, and time;
• Unlocks up to 10% more internal volume, enabling greater range or more compact vehicle architectures;
• Supports scalable mass production across multiple vehicle segments; and
• Enhances design flexibility for future EV platforms.

Importantly, this breakthrough didn’t come from exotic materials or entirely new chemistries. It emerged from Magna’s cross-disciplinary collaboration among manufacturing, engineering, tooling, and simulation teams — proving that process innovation alone can overcome long-standing physical limitations.

Moving EVs Forward, One Rectangle at a Time

OPTiForm represents a major advancement in EV battery enclosure technology and a critical step toward more efficient, scalable EV manufacturing. By solving the rectangle dilemma, Magna is helping OEMs globally with EV adoption and unlocking new opportunities for innovation.
